Commisioning

Assembly

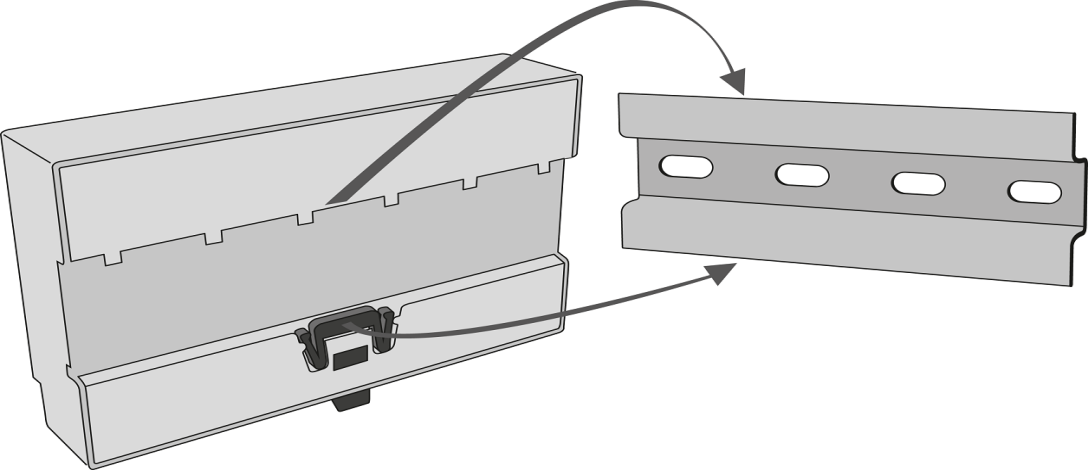

Mounting onto DIN rail -- click the Railduino Module onto the DIN rail (TS 35) as in the picture.

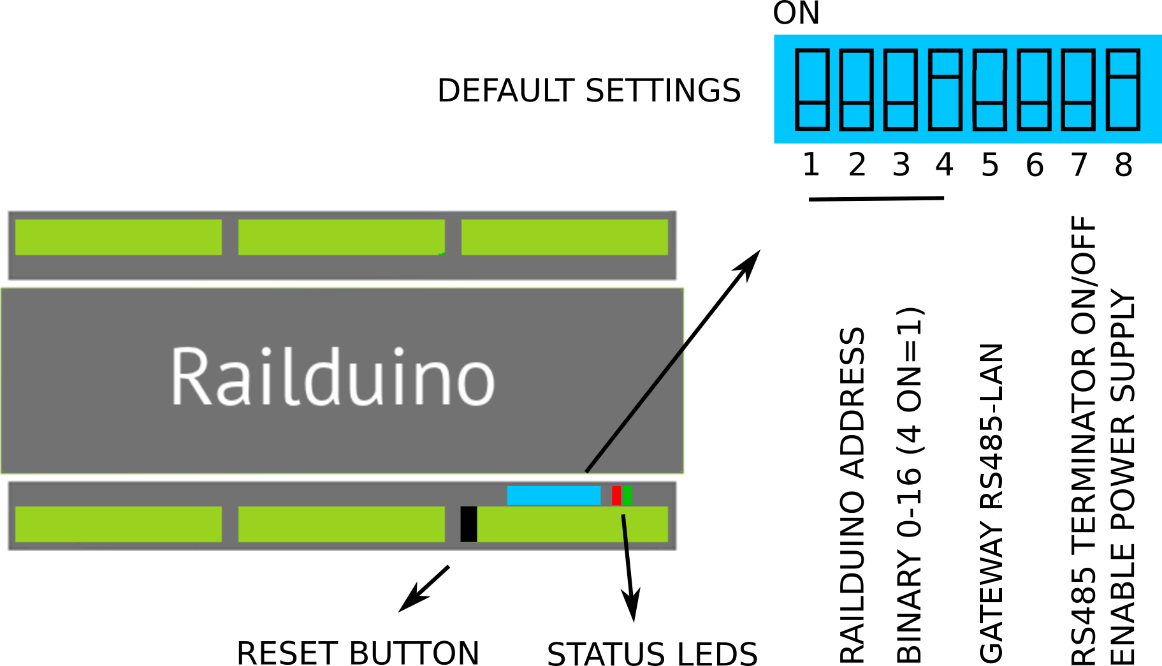

DIP switch settings

Pins 1-4 - Physical Address

• the 4-bit physical address (pins 1–4) allows for 16 unique addresses (0 to 15).
• ensure each device on the network has a unique address to avoid conflicts.
• number 1 in table below means the switch is in ON position

  Pins 1234	Address	Pins 1234	Address	Pins 1234	Address	Pins 1234	Address
  0000	0	0100	4	1000	8	1100	12
  0001	1	0101	5	1001	9	1101	13
  0010	2	0110	6	1010	10	1110	14
  0011	3	0111	7	1011	11	1111	15

Pins 5-8 - Other functions

• pins 5-7 are disabled as default
• enable power supply (pin 8) is enabled as default - it means the module hw remote switch off is disabled - power supply is allways on.
• pin 5 also switches RS485 (pin 5 ON) / Modbus RTU protocol (pin 5 OFF)

  Pin	Function	ON	OFF
  5	Gateway RS485-LAN	Enabled	Disabled
  6	Reserved	-	-
  7	RS485 terminator	Enabled	Disabled
  8	Enable power supply	Enabled	Disabled

Status LEDs

BLUE LED

- do not lit - no power supply, boot up phase or module failure
- flashes 1 Hz - device operating OK
- lit - awaiting IP address from the DHCP server

GREEN LED

- do not lit - no ongoing communication - device operating OK
- flashes - device communicating
- lit - communication failure
