Webserver

Built-in Webserver

The webserver is accessible via HTTP and supports basic interaction with the module - enables remote monitoring and configuration of the device.

Main features

  • Basic information - HW, IP, MAC Addresses, Description, Serial Number, HW Version, FW Version
  • Other settings - Cycles, RS485 Baud Rate, Control protocol, Pulses Sensing, Gateway, Serial Debug
  • Inputs and Outputs statuses and control - Relays, Dig. Inputs/Outputs, Ana. Inputs/Outputs, 1-wire sensors
  • Other features - Protocol Documentation, Github Link, Save&Reboot buttons

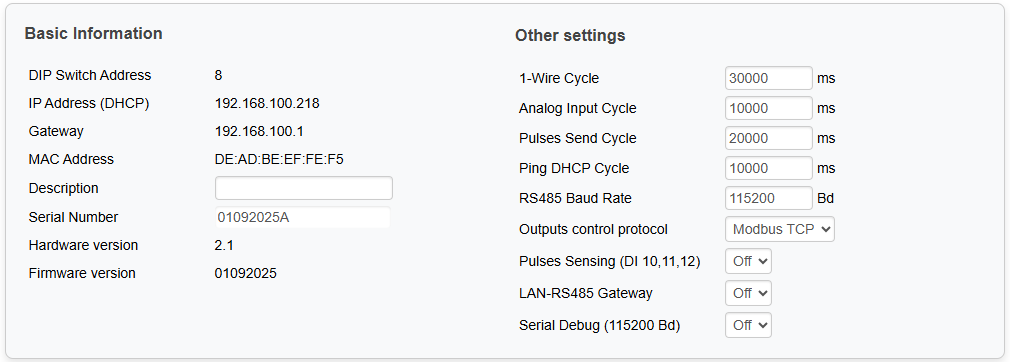

Basic information and Other settings

Basic info about the module with the possibility to add Description of the module. Other settings are set to default values and can be changed as requested:

Other settings values limitation

1-wire Cycle - min. 5s, max 60s, default 30s
Analog Input Cycle - min. 2s, max 60s, default 10s
Pulses Send Cycle - min. 2s, max 60s, default 20s
Ping DHCP Cycle - min. 2s, max 60s, default 10s
RS485 Baud Rate - min. 1200 Bd, max 115200 Bd, default 115200 Bd

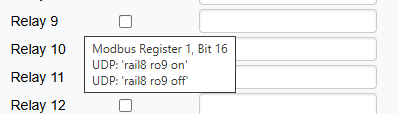

When hovering with cursor over output - the tooltip with protocol info is displayed

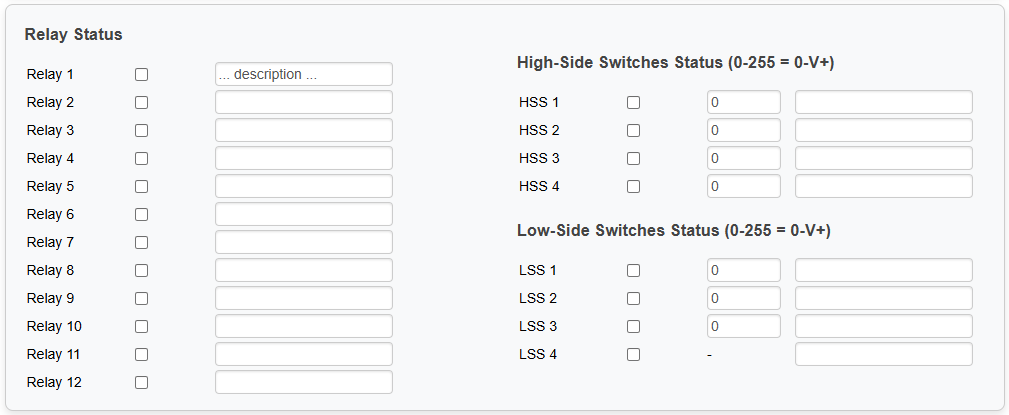

Relays and HSS/LSS outputs

This tab displays and allows control of Relay states (RO 1–12) and HSS/LSS (HSS 1–4, LSS 1–4). Just toggle a output on/off by checking the checkbox of the output. The HSS/LSS outputs can be used as PWM outputs with the value 0-255 in the field next to the output checkbox. You can add the Description to each output.

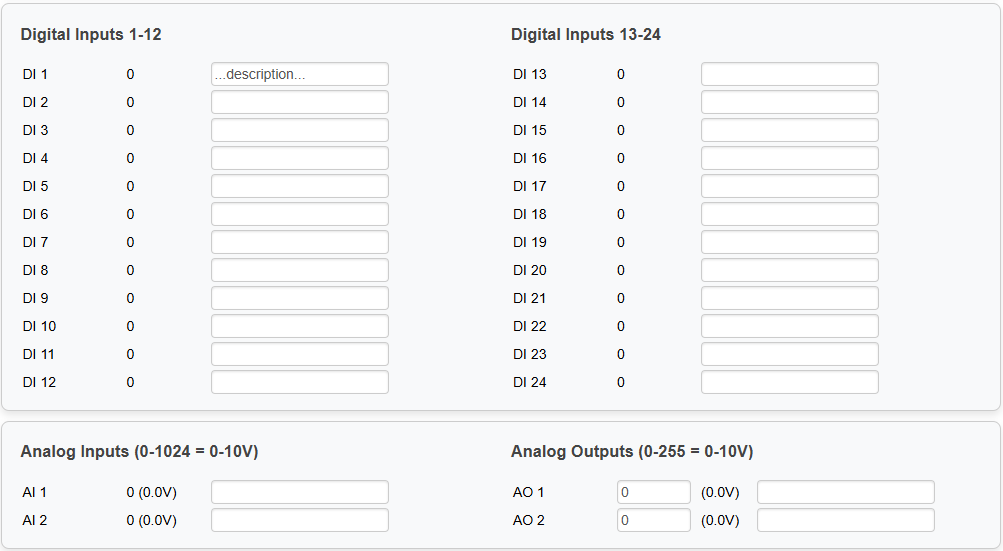

Digital inputs and Analog inputs/outputs

This tabs display Digital inputs states (DI 1–24) and Analog inputs/outputs (AI 1–2, AO 1–2). The analog outputs can be controlled with the values 0-255. You can add the Description to each input/output.

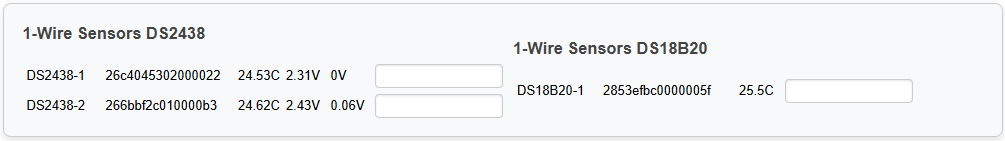

1-wire sensors

This tab displays detected 1-wire sensors (DS2438 or DS18B20) with according values - serial number and temperature value (Vad, Vcurr values for DS2438). You can add the Description to each sesnsor.
